ConnectivityLTE Cat M1 only (Quectel BG95-M1) on 16 LTE bands, PTCRB and AT&T approved, plus GNSS and Bluetooth 4.0 LE. No 2G fallback, so it needs an LTE-M SIM.
MarketNorth American version of the FMM130 with FCC, IC, PTCRB and AT&T approvals and no UKCA or CE marking. Sold for export to the US and Canada; for the UK or EU, choose the FMM130.

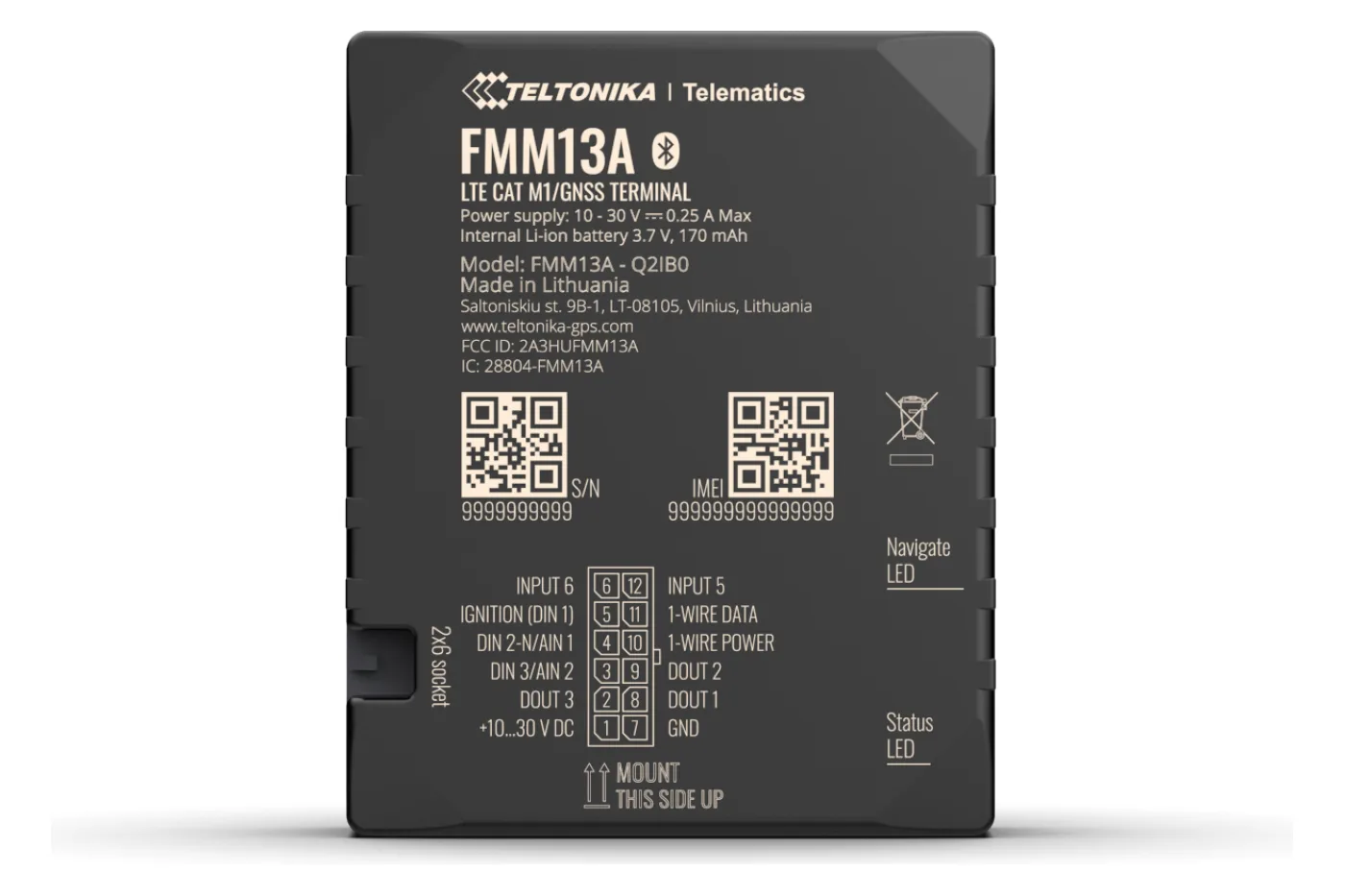

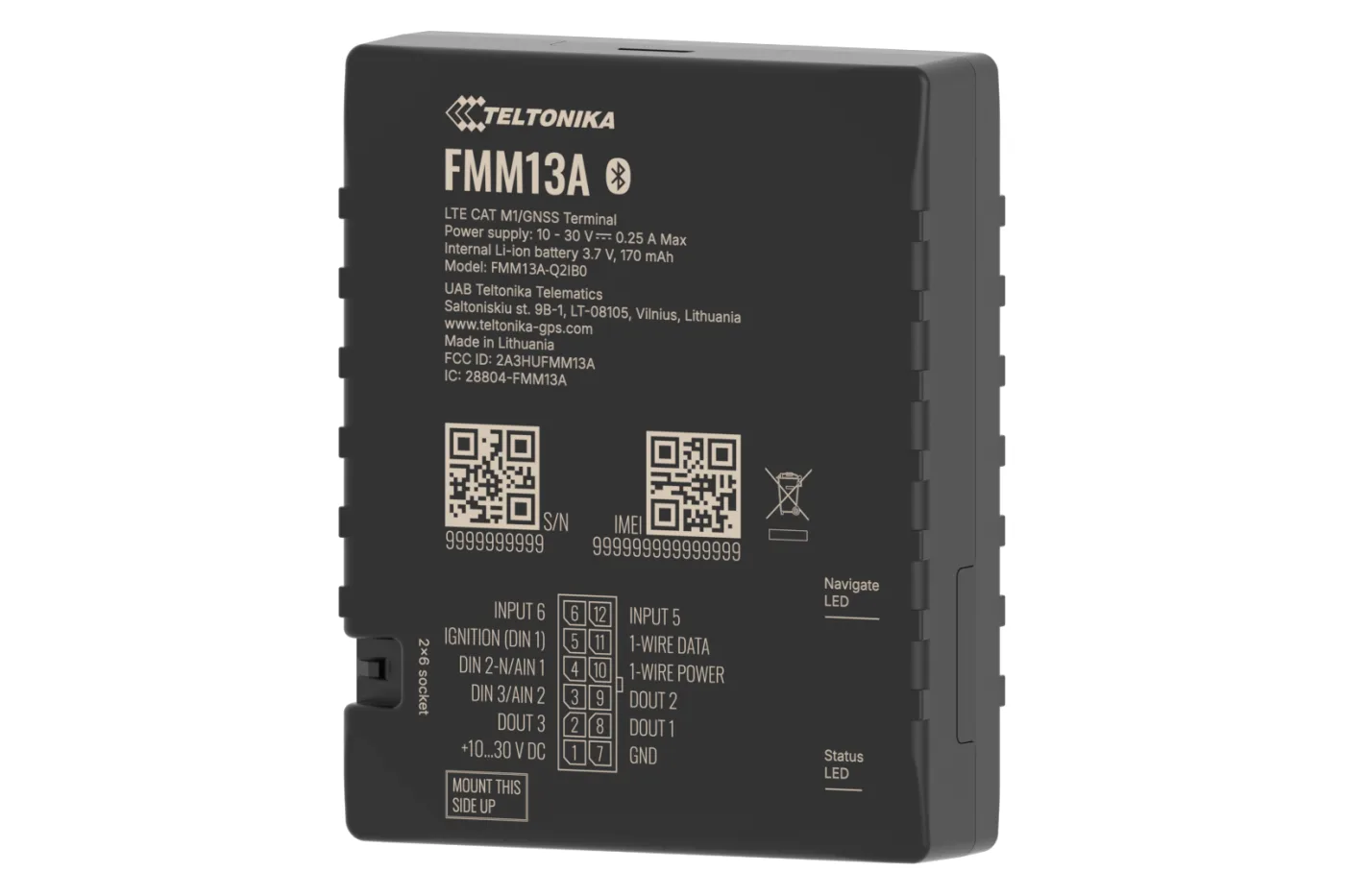

InstallationHardwired with the supplied 0.9 m 12-pin I/O cable, same pinout as the FMM130: power, ground and ignition on DIN1, with a 3 A external fuse. A professional fitter is recommended.
Power and battery10-30 V DC with overvoltage protection and a 170 mAh internal backup battery; under 3 mA in Ultra Deep Sleep and under 11 mA in Online Deep Sleep at 12 V.
GNSSGPS, GLONASS, Galileo, BeiDou and QZSS with AGPS, 33 tracking channels and < 2.5 m CEP position accuracy.
Inputs/outputs3 digital inputs (2 impulse; DIN2 and DIN3 double as the 2 analogue inputs), 3 open-collector outputs at 0.5 A, 1-Wire for iButton driver ID, and Bluetooth LE sensors.
CAN dataNo built-in CAN. Vehicle CAN data needs an LV-CAN200, ALL-CAN300 or CAN-CONTROL on the CAN-adapter input, or a Bluetooth OBDII dongle (sold separately).
Size and protection77 x 62 x 20 mm and 69 g, a larger case than the FMM130. IP41, for fitting inside the cabin; with the backup battery fitted it works from -20 to +40 °C.
Use casesVans, cars and work vehicles running in the US or Canada: driver behaviour, tow and unplug alerts, iButton driver ID, and immobiliser control with a relay.
Unlocked useSold without a SIM card and not locked to Fleetalyse. Use your own LTE-M (Cat M1) IoT/M2M SIM, APN and telematics platform. Delivered to the United States and Canada only.
