Connectivity4G LTE Cat 1 (B1/B3/B5/B8/B20/B28, no B7) with 2G GSM fallback, GNSS and Bluetooth 5.4 LE.
InstallationHard-wired through a 12-pin harness (0.9 m cable supplied): 8-32 V feed through a 3 A fuse. Slotted flanges for exterior mounting. Professional fitting recommended.
ProtectionIP69K: dust-tight and rated for high-pressure, high-temperature water and steam jets. Rated -20 to +60 C with the battery fitted.
Backup battery2,600 mAh Li-ion backup that recharges from the external supply. Power-off sleep under 0.28 mA at 12 V. No battery-life figure published.
Inputs/outputs5 configurable digital/analogue inputs, 1 negative input, 4 outputs and 1-Wire. No CAN data, tachograph download or dead reckoning.
Temperature sensingUp to five Dallas probes on 1-Wire, plus Teltonika EYE sensors over Bluetooth for temperature and humidity in trailers and reefers.
GNSSGPS, GLONASS, Galileo and BeiDou, 135 channels, under 1.8 m CEP position accuracy.

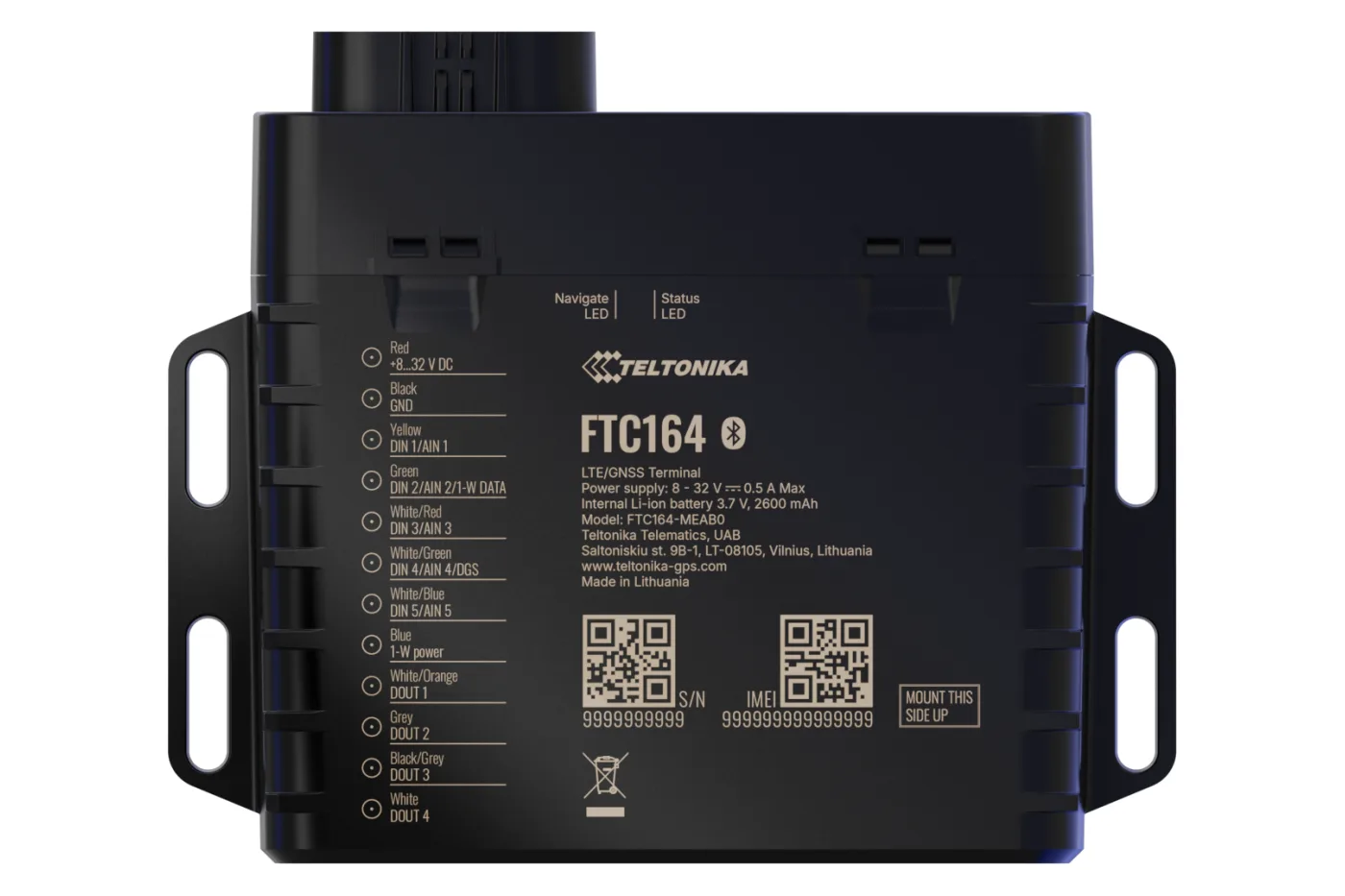

Dimensions87.75 x 106.40 x 29.70 mm, 147 g, internal GNSS and cellular antennas, USB-C, Nano-SIM, 128 MB memory.
Use casesTrailer tracking, plant and machinery, cold-chain temperature monitoring, stolen vehicle recovery.
Unlocked useSold without a SIM card and not locked to Fleetalyse. Use your own compatible IoT/M2M SIM card, APN and telematics platform configuration.
