Connectivity4G LTE Cat 1 (B1/B3/B5/B7/B8/B20/B28) with 2G GSM fallback, GNSS and Bluetooth 5.3 LE.
InstallationHard-wired with the supplied 7-pin cable. Mount firmly with a view of the sky and complete the dead-reckoning alignment drive. Professional installer recommended.
ProtectionIP67 casing: dust-tight and protected against temporary immersion. Works from -30 °C to +85 °C; the backup battery charges only between 0 °C and +45 °C.
Power and battery10-97 V DC input (12 V nominal), reverse-polarity protected (±100 V absolute maximum), 3 A internal fuse, under 35 mA at 12 V with no load. 380 mAh backup battery for short power loss.
GNSSGPS, GLONASS, Galileo and BeiDou, 75-channel L1 receiver, < 1.8 m CEP position accuracy.
Dead reckoningAccelerometer and gyroscope. ≤ 25 m error over 1 km without GNSS in at least 8 of 10 Teltonika field tests. Needs an alignment drive. Not supported on two-wheelers.

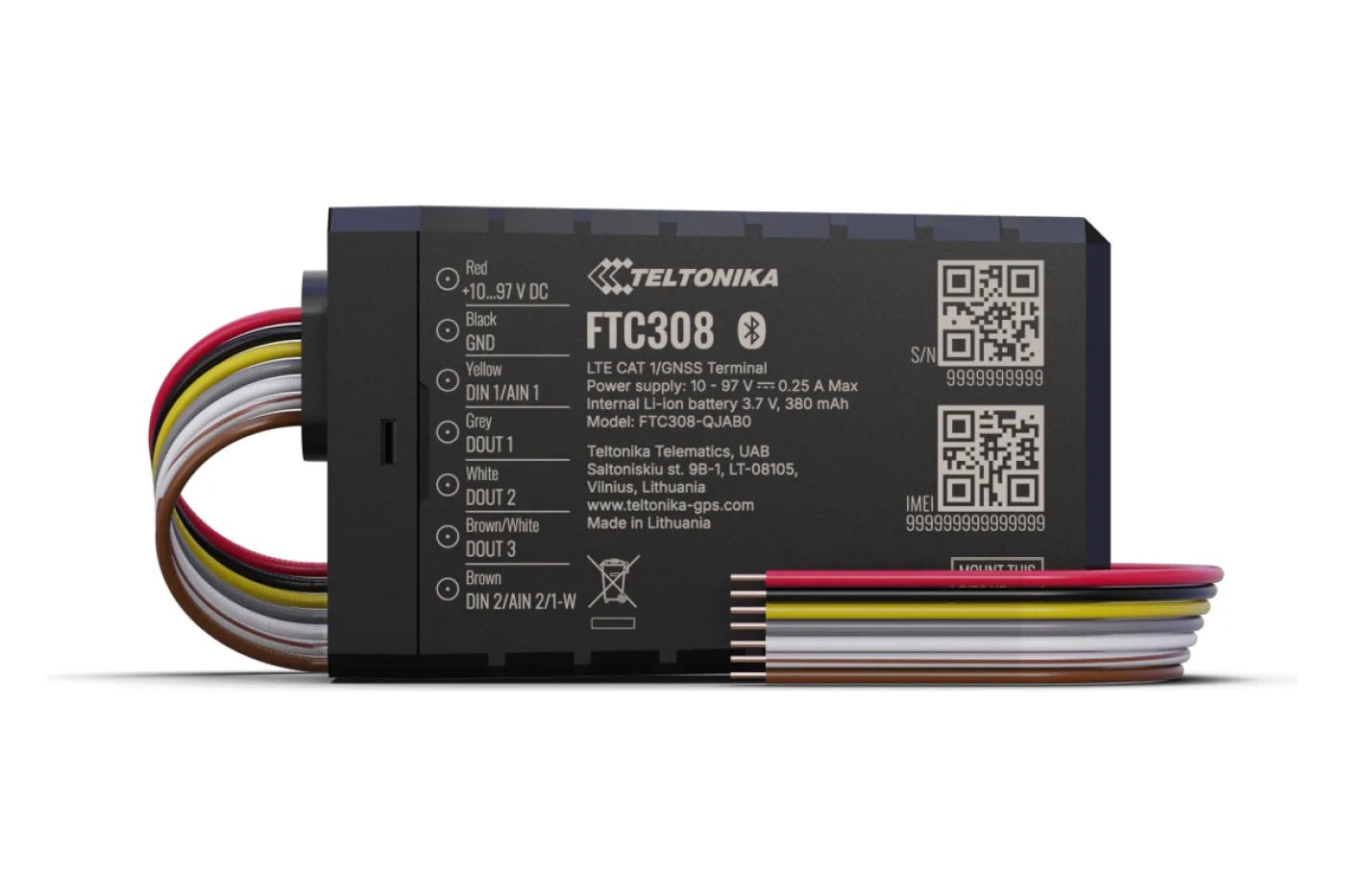

Inputs and outputs2 digital inputs (also 0-100 V analogue), 3 digital outputs up to 500 mA, 1-Wire on the DIN2 wire for up to five sensors. No CAN interface.

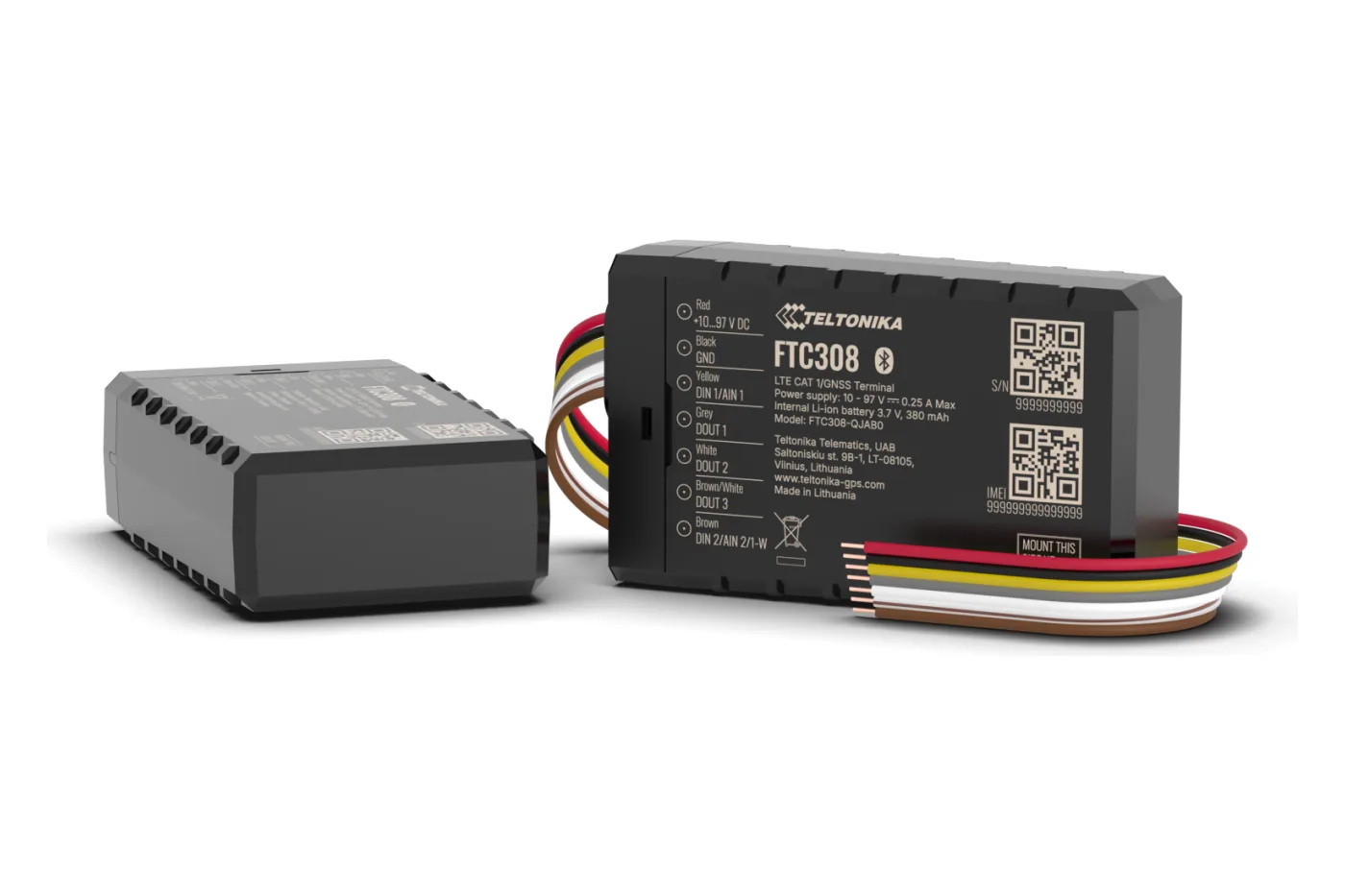

Dimensions69 x 41 x 20.9 mm, 75 g, internal GNSS and cellular antennas, 128 MB memory.
Use casesElectric forklifts, shuttle carts and utility vehicles; also a wired tracker for e-bikes, without dead reckoning.
Unlocked useSold without a SIM card and not locked to Fleetalyse. Use your own compatible IoT/M2M SIM card, APN and telematics platform configuration.
