Connectivity4G LTE Cat 1 (B1/B3/B5/B8/B20/B28, no B7) with 2G GSM fallback, GNSS and Bluetooth LE.
InstallationHard-wired through a 12-pin harness (0.8 m cable supplied): 8-32 V permanent feed through a 3 A fuse, ground and ignition. Professional fitting recommended.
ProtectionIP41 (Teltonika declaration, May 2026): inside the cab or in an enclosure only.
Inputs/outputs4 configurable digital/analogue inputs, 1 negative input, 3 outputs and 1-Wire. Not sold for CAN data; no tachograph download or dead reckoning.
Temperature sensingUp to five Dallas probes on 1-Wire, plus Teltonika EYE sensors over Bluetooth LE for temperature, humidity, movement and magnet status.
Power and battery8-32 V DC (12 V nominal), with a 320 mAh Li-ion backup battery supplied in the box and fitted during setup.
GNSSGPS, GLONASS, Galileo and BeiDou, 135 channels, under 1.5 m CEP position accuracy.

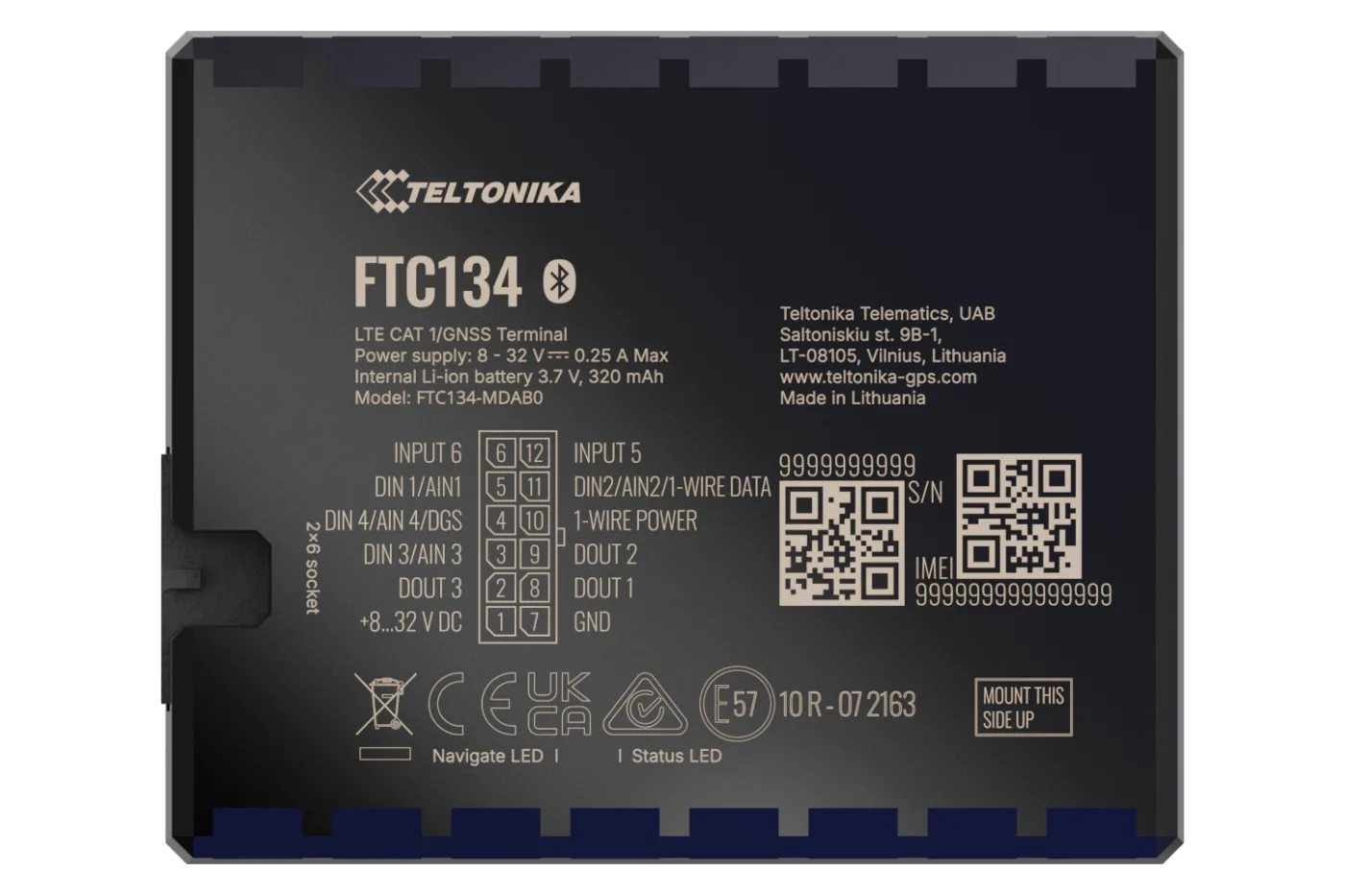

Dimensions77 x 63 x 21.25 mm, 73.7 g, internal GNSS and cellular antennas, USB-C, Nano-SIM, 128 MB memory.
Use casesVan fleets with door sensors or immobilisers, temperature-controlled vans, rental fleets, driver behaviour, theft recovery.
Unlocked useSold without a SIM card and not locked to Fleetalyse. Use your own compatible IoT/M2M SIM card, APN and telematics platform configuration.
