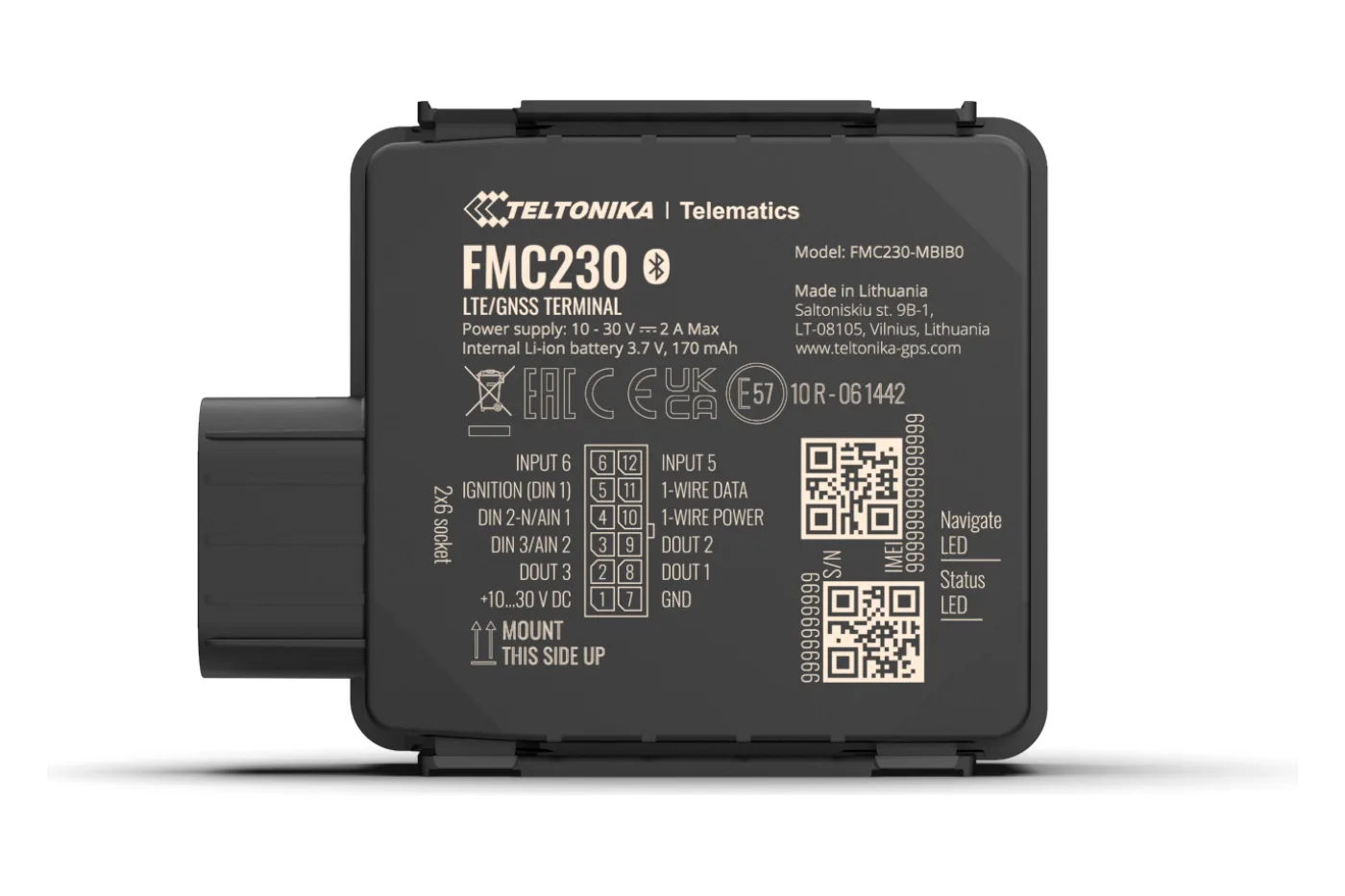

Unlocked Teltonika FMC230 4G tracker in an IP67 case for plant and work vehicles, with fuel flow meter inputs and three outputs, sold with no SIM card for your own compatible IoT or M2M SIM and tracking platform.
A sealed 4G tracker for plant, tractors and work vehicles, with impulse inputs that read a fuel flow meter directly.
IP67dust-tight, immersion
Made to be fixed to the machine itself, on a tractor, dumper or chassis, rather than tucked behind a dashboard. Teltonika says GNSS reception is best when it is mounted outside with the label facing open sky.
IP67 holds only with both case clips fully closed and the cable connected. It covers immersion, not pressure washing.
2impulse inputs
DIN1 and DIN2 count pulses from a fuel flow meter, so a machine that burns a lot of fuel reports measured consumption rather than an estimate. CAN fuel data is possible too, through a Teltonika adapter.
Flow meters, level sensors and CAN adapters (LV-CAN200, ALL-CAN300 or CAN-CONTROL) are bought separately and fitted by an installer.
3outputs at 0.5 A
Digital inputs can watch an equipment switch or a panic button, 1-Wire takes a temperature probe or an iButton reader for driver ID, and the three outputs can switch an immobiliser relay, an LED or a buzzer.
DIN2 and DIN3 share pins with the analogue inputs, so not every input is free at once. Relays, probes, readers and their fitting are extra.
170 mAhbackup battery
Towing, unplug and jamming alerts flag a machine being moved or interfered with, and crash detection reports an impact. Green Driving, speeding and idling reports show how it is being used.
The battery only reports a power cut: the FMC230 runs from the machine's own supply.
Assets
Plant and machinery tracking
Keep excavators, dumpers and generators on the map, record their hours and get told the moment one leaves site.
Read more
Cost control
Fuel monitoring and CAN data
Read real fuel level, consumption and odometer straight from the vehicle and find where the fuel budget is going.
Read more
Cold chain
Temperature monitoring
Add a wireless EYE Sensor to record temperature and humidity in vans, trailers and containers alongside their location.
Read more
This listing is for a new unlocked Teltonika FMC230 (order code FMC230KY2F01), a sealed 4G tracker for plant, agricultural and construction machines and other vehicles that work in dirt and weather. It is sold as hardware only, with no SIM card supplied and no Fleetalyse platform lock.
Choose this unlocked no-SIM version when you want to configure the APN, SIM provider and tracking platform yourself. Teltonika states the FMC230 must be connected by qualified personnel, so plan for a professional installer. The FMC230 is also supported on the Fleetalyse tracking platform, so you can move it to Fleetalyse later with bring-your-own-device.
This listing is for new, unlocked Teltonika GPS tracker hardware only. No Fleetalyse SIM card is included, the device is not locked to Fleetalyse, and configuration is completed using your own compatible IoT or M2M SIM card, APN settings and chosen tracking platform.
Optional connectivity for a compatible unlocked tracker. 12-month paid term from first network activation. No automatic repeat charge. Check the included data allowance, roaming availability and setup requirements on the SIM product page. You can also use your own compatible SIM.
View IoT SIM cardUnlocked Teltonika FMC230 4G tracker in an IP67 case for plant and work vehicles, with fuel flow meter inputs and three outputs, sold with no SIM card for your own compatible IoT or M2M SIM and tracking platform.
£67.99 inc VAT (£56.66 ex VAT) with free UK delivery. That is the hardware only: no SIM, no subscription and no lock to any platform.
The tracker ships with Teltonika factory firmware and default settings, not configured for Fleetalyse. You fit your own IoT or M2M SIM, set the server and APN with Teltonika's configuration tool, and point it at whichever telematics platform you use. If you later want it on Fleetalyse, bring-your-own-device takes it from £5.99 a month.
Any IoT/M2M SIM with an APN you can set. If you would rather not shop around, add the Fleetalyse IoT SIM on this page: it comes as a 3-in-1 card with roaming in up to 135 countries.
Yes. The FMC230 is 4G LTE Cat 1 with 2G (GSM) fallback, covering the main UK LTE bands (B1, B3, B7, B8 and B20), so it keeps working on LTE after the UK 2G switch-off scheduled from 2029 (EE, O2) into 2030 (Vodafone). Fit a Micro-SIM with 4G data.
Hard-wired through the supplied I/O cable to a permanent 10-30 V supply with an external 3 A fuse, ground to the vehicle frame and ignition on DIN1. Teltonika recommends taking power straight from the battery terminals and says the unit must be connected by qualified personnel, so use a professional installer. With the power disconnected, fit the Micro-SIM (PIN request off) and connect the internal battery, then press both covers fully home: IP67 holds only with the clips closed and the cable connected. Mount it label side up with at least three-quarters of the view above free of metal; because it is sealed it can go outside the cab, where Teltonika says GNSS reception is best.
Yes, with the right sensor. DIN1 and DIN2 work as impulse inputs for a fuel flow meter, and the analogue inputs take an analogue fuel-level sensor. CAN fuel data needs an optional Teltonika LV-CAN200, ALL-CAN300 or CAN-CONTROL adapter, or a Bluetooth OBDII dongle. DIN1 is also the usual ignition input, so agree the wiring with your installer; meters, sensors and adapters are bought separately.
Not all of them. DIN2 shares its pin with analogue input AIN1 (and the negative input), and DIN3 shares its pin with AIN2, so each of those pins works either as a digital or as an analogue input. Plan the wiring with your installer before fitting.
No. Its 170 mAh backup battery is there to report a power cut, not to run the tracker. For a trailer that loses power when it is unhitched, the FMC234 is also IP67 and has a 1000 mAh battery; for assets with no power at all, choose a battery-powered asset tracker.
Yes, automatically at the basket: 3% off 3+, 5% off 5+, 10% off 10+ units. The discount applies to the hardware in the same order, and it stacks with a referral or promotional code.
UK delivery is free and goes by Royal Mail 24. Orders placed before 2pm Monday to Friday are normally dispatched the next working day, and Royal Mail 24 usually arrives the working day after that, so most UK orders land within two working days. Royal Mail aims at next-day delivery rather than guaranteeing it. Full details are on our delivery page.
Every unit is new, boxed Teltonika stock with the manufacturer's 24-month warranty. Consumers have 14 days to return an unused device under our returns policy, and business customers can talk to us before ordering if they want to check fit on one vehicle first.
Read before you buy: Plant machinery GPS tracker guide · Fuel theft detection with telematics · How unlocked GPS trackers give fleets more control · all 342 supported tracker models
Check each product's equipment and installation requirements before choosing.
